Données Acoustiques

ASTM C423-09a Coefficient d’absorption acoustique par méthode de salle de réverbération Un numéro de désignation ASTM identifie une version unique d’une norme ASTM. C = matériaux de céramique, de béton et de maçonnerie; 423 = numéro séquentiel attribué 09 = année d’adoption initiale (ou, en cas de révision, l’année de la dernière révision) a = indique une révision ultérieure la même année.
Une série d’essais a été réalisée pour comparer divers paramètres des essais ASTM C423 et ISO 354 relatifs à l’absorption des plafonds acoustiques. Les résultats indiquant que la taille de l’échantillon n’a pas d’impact significatif sur les performances d’absorption. Les données d’absorption, représentées par les coefficients α et αs, sont pratiquement identiques pour les deux méthodes. Cependant, il peut exister des différences significatives entre les valeurs SAA et αw déclarées qui sembleraient, à un concepteur non instruit, de refléter des différences de performances du produit. Références: ASTM C423, « Méthode d’essai standard pour les coefficients d’absorption acoustique et acoustique par la méthode de la salle de réverbération », 2002. ISO 354, « Acoustique – Mesurage de l’absorption acoustique en salle de réverbération », 2003.

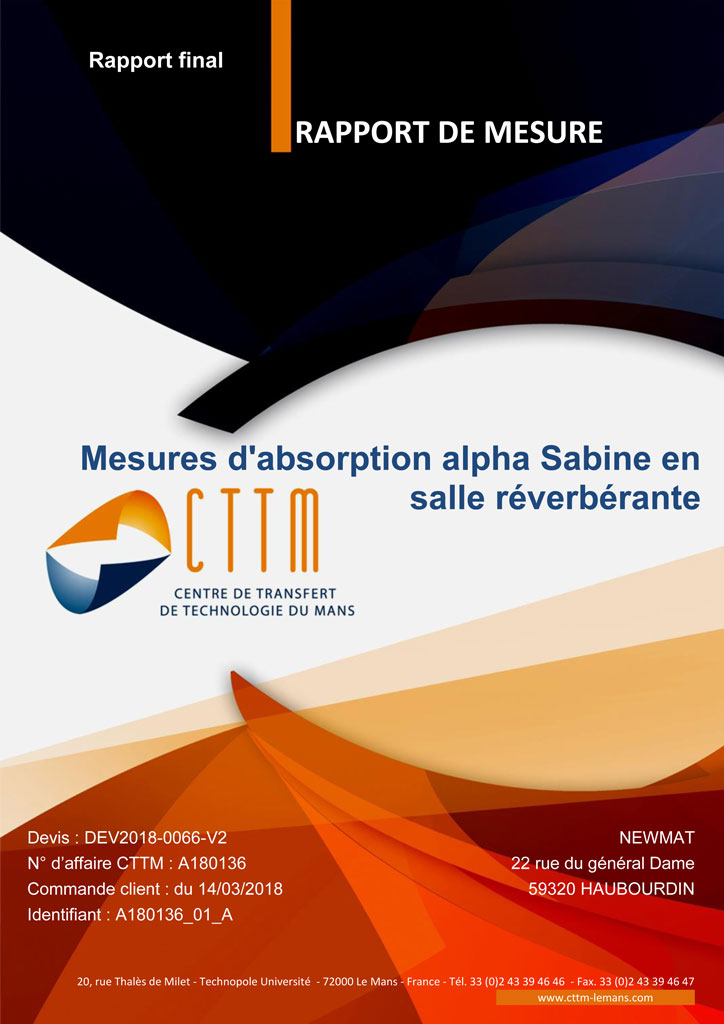

Compte Rendu D'Étude - A180136_01 Newmat

Performances Acoustiques d’une toile micro-perforée seule – plenum de 123mm sans absorbant acoustique

(AlphaW (αw) : 0.45) Et

Performances Acoustiques d’une toile micro-perforée plus une toile non micro-perforée – plenum de 123mm sans absorbant acoustique et 50 mm entre les deux toiles.

(AlphaW (αw) : 0.5) Voir / Télécharger le PDF

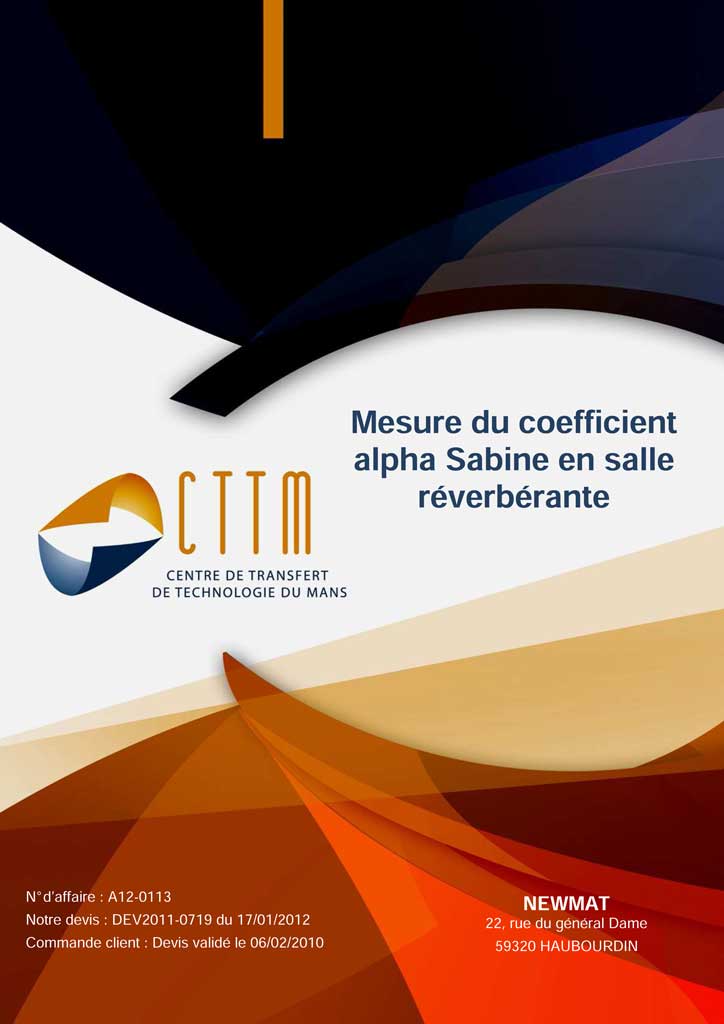

Rapport Acoustique avec temps de réverbération

Performances Acoustiques de la toile NEWMAT micro-perforée – plenum de 100mm comprenant une laine de roche de 40mm au fond, ou un molleton de 10mm ou un molleton de 20mm.

(AlphaW (αw) : 0.45 & 0.75) Et

Performances Acoustiques des dalles NEW/MIRODAL micro-perforées – plenum de 100mm comprenant une laine de roche de 40mm, ou un molleton de 10mm ou un molleton de 20mm.

(AlphaW (αw) : 0.65 & 0.9) Voir / Télécharger le PDF

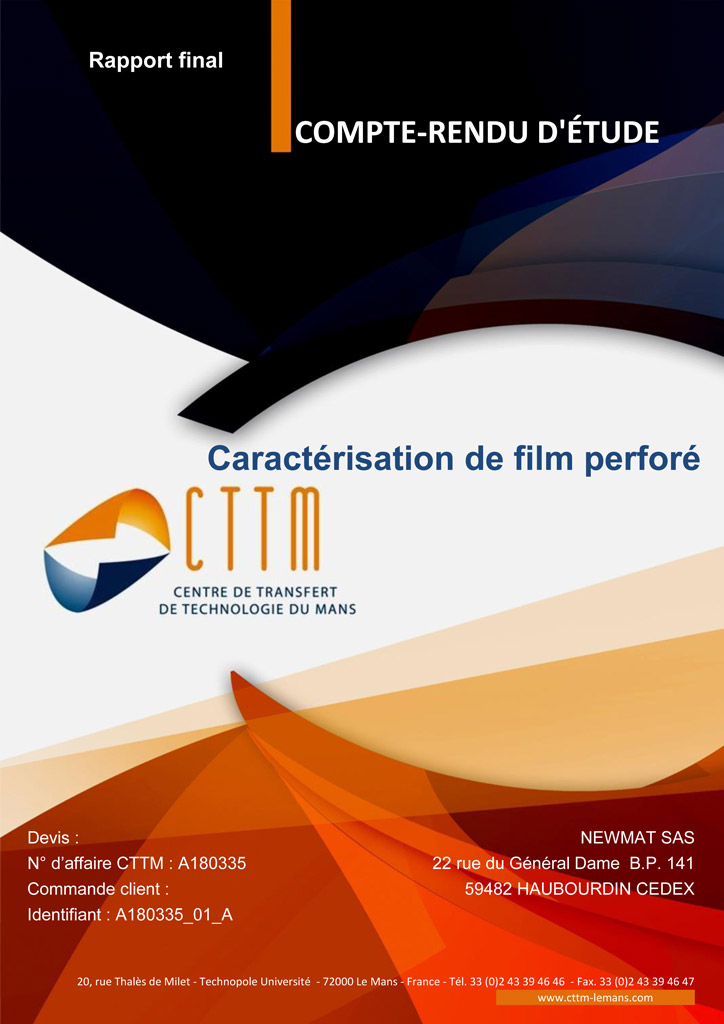

Compte-rendu d'étude

Performances Acoustiques de la toile NEWMAT miroir micro-perforée – plenum de 100mm & plenum de 50mm comprenant une laine de roche de 40mm au fond.

(AlphaW (αw) : 0.45 & 0.75) Voir / Télécharger le PDF
2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 20mm Polyester Acoustical Core (NRC: 0.80)

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 20mm Polyester Acoustical Core

(NRC: 0.80) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 20mm Polyester + 1” Fiberglass Board Acoustical Core (NRC: 1.00) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 20mm Polyester + 1” Fiberglass Board Acoustical Core

(NRC: 1.00) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 10mm Polyester + 1” Fiberglass Board Acoustical Core

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 10mm Polyester + 1” Fiberglass Board Acoustical Core

(NRC: 0.95) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated and M-15 “Mini-Perf” Stretch Material and 10mm Polyester and 2” Fiberglass Board Acoustical Core (NRC: 1.00) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated + M-15 “Mini-Perf” Stretch Material + 10mm Polyester + 2” Fiberglass Board Acoustical Core

(NRC: 1.00) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces - 7% tension) and 7/16" Polyester Acoustical Core (NRC: 0.85) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces – 7% tension) and 7/16” Polyester Acoustical Core

(NRC: 0.85) View / Download PDF
2” thick Panel with ACM-15-0.35 Perforated Stretch Material (both faces - 7% tension) and 7/16” Polyester Acoustical Core (NRC: 0.80) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.35 Perforated Stretch Material (both faces – 7% tension) and 7/16” Polyester Acoustical Core

(NRC: 0.80) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces - 7% tension) and 1” thick Fiberglass Board Acoustical Core (NRC: 0.90) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces – 7% tension) and 1” thick Fiberglass Board Acoustical Core

(NRC: 0.90) View / Download PDF
2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces - 7% tension) and 2” thick Fiberglass Board Acoustical Core (NRC: 0.95) Page 1 of 3

Newmat Panel – 2” thick Panel with ACM-15-0.45 Perforated Stretch Material (both faces – 7% tension) and 2” thick Fiberglass Board Acoustical Core

(NRC: 0.95) View / Download PDF
Solid membrane over corrugated steel 48" from membrane (NRC=0.35)

ASTM C423 – Test 936-1b-99 – Solid membrane over corrugated steel 48” from membrane

(NRC: 0.35) View / Download PDF
Solid membrane over 1” 3-lb. density fiberglass Type E90 mounting (NRC: 0.45)

ASTM C423 – Solid membrane over 1” 3-lb. density fiberglass Type E90 mounting

(NRC: 0.45) View / Download PDF
Solid membrane over 2” 3-lb. density fiberglass Type E90 mounting (NRC: 0.65)

ASTM C423 – Solid membrane over 2” 3-lb. density fiberglass Type E90 mounting

(NRC: 0.65) View / Download PDF
Solid membrane over 1” of K13 spray 46” from membrane (NRC: 0.55)

ASTM C423 – Test 936-1b-99 – Newmat solid membrane over corrugated steel coated with a 1″ layer of SonaSpray FC Cellulose Acoustical Finish from K-13 Spray-On Systems.

(NRC: 0.55) View / Download PDF
Solid membrane over 2-1/4” of K13 spray 45” from membrane (NRC: 0.55)

ASTM C423 – Test 936-9-99 – Newmat solid membrane over corrugated steel coated with a 2.25″ layer of SonaSpray FC Cellulose Acoustical Finish from K-13 Spray-On Systems.

(NRC: 0.55) View / Download PDF
Solid membrane over 6” of R19 fiberglass 3” from membrane (NRC: 0.70)

ASTM C423 – Test 936-2b-99 – Newmat solid membrane over corrugated steel and 6″ of R-19 fiberglass (over the steel).

(NRC: 0.65) View / Download PDF
Solid membrane over 6” of R19 fiberglass 42” from membrane (NRC: 0.70)

ASTM C423 – Test 936-8-99- Newmat solid membrane over 6″ of R-19 fiberglass suspended inside the box, 3″ from membrane (measured from fiberglass’ face).

(NRC: 0.70) View / Download PDF
Solid membrane over 3-7/8” RA24 fiberglass 5-3/4” from membrane (NRC: 0.85)

ASTM C423 – Test 936-8b-99 – Newmat solid membrane over 3-7/8″ of RA-24 (1 .5#) fiberglass suspended inside the box, 5.75″ from membrane (measured from fiberglass’ face).

(NRC: 0.70) View / Download PDF
Newmat Perforated membrane over 6" R19 fiberglass 42" from membrane (NRC: 0.95)

ASTM C423 – Test 936-4-99 – Newmat STANDARD PERF membrane over corrugated steel and 6″ of R-19 fiberglass (over the steel).

(NRC: 0.95) View / Download PDF
Newmat Perforated membrane over 1" of K13 spray 46" from membrane (NRC: 0.85)

ASTM C423 – Test 936-5-99 – Newmat STANDARD PERF membrane over corrugated steel coated with a 1″ layer of SonaSpray FC Cellulose Acoustical Finish from K-13 Spray-On Systems.

(NRC: 0.85) View / Download PDF
Newmat Perforated membrane over 2-1/4" of K13 spray 45" from membrane (NRC: 0.85)

ASTM C423 – Test 936-11-99 – Newmat Standard Perf membrane over corrugated steel coated with a 2.25″ layer of SonaSpray FC Cellulose Acoustical Finish from K-13 Spray-On Systems.

(NRC: 0.85) View / Download PDF
Newmat Perforated (Perfo 1 or 2) membrane over 6" R19 fiberglass 42" from membrane (NRC: 0.95)

ASTM C423 – Test 936-3-99 – Newmat MINI-PERF membrane (Perfo 1 or 2) over corrugated steel and 6″ of R-19 fiberglass (over the steel).

(NRC: 0.95) View / Download PDF
Newmat Perforated (Perfo 1 or 2) membrane over 1" of K13 spray 46" from membrane (NRC: 0.85)

ASTM C423 – Test 936-6-99 – Newmat MINI-PERF membrane (Perfo 1 or 2) over corrugated steel coated with a 1″ layer of Sana Spray FC Cellulose Acoustical Finish from K-13 SprayOn Systems.

(NRC: 0.85) View / Download PDF
Newmat Perforated (Perfo 1 or 2) membrane over 2-1/4" of K13 spray 45" from membrane (NRC: 0.85)

ASTM C423 – Test 936-10-99 – Newmat Mini-Perf membrane (Perfo 1 or 2) over corrugated steel coated with a 2.25″ layer of SonaSpray FC Cellulose Acoustical Finish from K-13 Spray-On Systems.

(NRC: 0.85) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over corrugated steel 48" from membrane (NRC: 0.50)

ASTM C423 – Test 936-2-99 – NEW/ACOUSTIC Micro-Perf membrane (micro-perforated) was tested for absorption in an E·1219 mounting. The Newmat membrane was stretched over the top of 9′x8′x4′ open box made of 3/4″ plywood (unpainted). For this test, no fill of any kind was suspended inside the box.

(NRC: 0.50) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 1" 6-lb. fiberglass Type A mounting (NRC: 0.85)

ASTM C423 – Test 936-15b-00 – A layer of 1″ thk 6-lb. board fiberglass was placed on the floor of the reverb chamber (type A mount) inside a 3-3/8″ tall aluminum frame. NEW/ACOUSTIC (micro-perforated) ceiling membrane was stretched across the top of the frame.

(NRC: 0.85) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 1" 6-lb. fiberglass Type E400 mounting (NRC: 0.90)

ASTM C423 – Test 936-15e-00 – One layer of 1″ thk 6-lb. board fiberglass was placed on the floor of the reverb chamber inside an E400 mounting frame (made of unpainted plywood). NEW/ACOUSTIC (micro-perforated) membrane was stretched across the top of the frame.

(NRC: 0.90) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 2" 6-lb. fiberglass Type A mounting (NRC: 1.00)

ASTM C423 – Test 936-15c-00 – Two layers of 1″ thk 6-lb. board fiberglass were placed on the floor of the reverb chamber (type A mount) inside a 3-3/8″ tall aluminum frame. NEW/ACOUSTIC (micro-perforated) membrane was stretched across the top of the frame.

(NRC: 1.00) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 2" 6-lb. fiberglass Type E400 mounting (NRC: 0.90)

ASTM C423 – 936-15d-00 – Two layers of 1″ thk 6-lb. board fiberglass were placed on the floor of the reverb chamber inside an E400 mounting frame (made of unpainted plywood). NEW/ACOUSTIC (micro-perforated) membrane was stretched across the top of the frame.

(NRC: 0.90) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 6" R19 fiberglass 3-3/4" away (NRC: 0.80)

ASTM C423 – 936-13-99 – NEW/ACOUSTIC M-15 (micro-perforated) membrane was tested for absorption in an E-1219 mounting. The membrane was stretched over the top of a 9′x8′x4′ open box made of 3/4″ plywood (unpainted). For this test, a 1″ thk layer of 1.5-lb. flglass (Owens- Corning RA24) was suspended inside the box 8.75″ (measured from flglass’ face) from membrane.

(NRC: 0.80) View / Download PDF
NEW/ACOUSTIC (microperforated) membrane over 1-1/2" RA24 fiberglass 8-3/4" away (NRC: 0.85)

ASTM C423 – Test 936-12-99 – NEW/ACOUSTIC M-15 (micro-perforated) membrane was tested for absorption in an E-1219 mounting. The membrane was stretched over the top of a 9′x8′x4′ open box made of 3/4″ plywood (unpainted). For this test, a 6″ thk layer of 6-lb. f/glass (Owens- Corning R-19) was suspended inside the box 3.75″ (measured from f/glass’ face) from membrane.

(NRC: 0.85) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (micro-perf) 2 layers of TOB micro-perforated membranes over drywall type E400 mounting (NRC: 0.50) Page 1 of 4

ASTM C423-02 (1a) – NEW/ACOUSTIC (micro-perforated) Double Layer of Newmat T0B Micro-Perforated Membrane suspended over drywall in ASTM E400 mount.

(NRC: 0.50) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (microperforated) 2 layers of TOB membranes over 1" 6-lb. fiberglass type E1400 mounting (NRC: 0.60) Page 1 of 4

ASTM C423-02 (3a) – NEW/ACOUSTIC (micro-perforated) Double Layer of Newmat T0B Micro-Perforated Membrane suspended over drywall and 1″ of fiberglass in ASTM E1400 mount.

(NRC: 0.70) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (microperforated) 2 layers of TOB over 2" 6-lb. fiberglass type E400 mount. (NRC: 0.65) Page 1 of 4

ASTM C423-02 (2c) – NEW/ACOUSTIC (micro-perforated) Double Layer of Newmat T0B and T7 Micro-Perforated Membrane suspended over drywall and 2″ of fiberglass in ASTM E400 mount.

(NRC: 0.65) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (microperforated) Layers of TOB and T7 membranes over drywall in ASTM E400 mount. (NRC: 0.50) Page 1 of 4

ASTM C423-02 (2b) – NEW/ACOUSTIC (micro-perforated) Layers of Newmat T0B and T7 Micro-Perforated Membrane suspended in tandem over drywall and 1″ of Fiberglass  in ASTM E400 mount.

(NRC: 0.55) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (microperforated) Layers of TOB and T7 membranes over 1" 6-lb. fiberglass type E400 mount. (NRC: 0.55) Page 1 of 4

ASTM C423-02 (1c) – NEW/ACOUSTIC (micro-perforated) Layers of Newmat T0B Micro-Perforated Membrane suspended over drywall and 2″ of fiberglass in ASTM E400 mount.

(NRC: 0.65) View / Download PDF
Layers of TOB and T7 membranes over 2" 6-lb. fiberglass type E400 mount. (NRC: 0.60)

ASTM C423-02 (1b) – NEW/ACOUSTIC (micro-perforated) Layers of Newmat T0B Micro-Perforated Membrane suspended over drywall and 1″ of fiberglass in ASTM E400 mount.

(NRC: 0.60) View / Download PDF
ASTM C423-02 - NEW/ACOUSTIC (microperforated) 2 layers of TOB membranes over 2" 6-lb. fiberglass type E1400 mount. (NRC: 0.75) Page 1 of 4

ASTM C423-02 (3b) – NEW/ACOUSTIC (micro-perforated) Double-layer of Newmat TOB Micro-Perforated Membranes suspended over drywall and 2″ of fiberglass in ASTM type E1400 mount.

(NRC: 0.75) View / Download PDF
Single Layer of Micro-Perforated Membrane suspended over 4” cavity depth Page 1 of 4

ASTM C423-07 (01S) – NEW/ACOUSTIC (micro-perforated) Single and Double Layer of TOB Micro-Perforated Membrane suspended over 4″ cavity depth.

(NRC: 0.45) View / Download PDF
Double Layer of Micro-Perforated Membrane suspended over 4” cavity depth - Page 1 of 4

ASTM C423-07 (01D)- NEW/ACOUSTIC (micro-perforated) Double Layer of TOB Micro-Perforated Membrane suspended over 4″ cavity depth.

(NRC: 0.55) View / Download PDF
Micro-perforated membrane with 1/10mm perforation suspended over 4” cavity depth (NRC: 0.40) Page 1 of 4

ASTM C423-07 (64-01) – Micro-perforated membrane with 1/10mm perforation suspended over 4″ cavity depth

(NRC: 0.40) View / Download PDF
Micro-perforated membrane with 2/10mm perforation suspended over 4” cavity depth (NRC: 0.50) Page 1 of 4

ASTM C423-07 (64-02) – Micro-perforated membrane with 2/10mm perforation suspended over 4″ cavity depth

(NRC: 0.50) View / Download PDF
Micro-perforated membrane with 3/10mm perforation suspended over 4” cavity depth (NRC: 0.60) Page 1 of 4

ASTM C423-07 (64-03) – Micro-perforated membrane with 3/10mm perforation suspended over 4″ cavity depth

(NRC: 0.60) View / Download PDF
Micro-perforated membrane with 3/10mm perforation and cone-shaped relief suspended over 4” cavity depth (NRC: 0.65) Page 1 of 4

ASTM C423-07 (64-04) – Micro-perforated membrane with 3/10mm perforation and cone-shaped relief suspended over 4″ cavity depth

(NRC: 0.65) View / Download PDF
Single Layer of Micro-Perforated Membrane suspended over various cavity depths and acoustic fills - Page 1 of 5

ASTM C423-07 (52-01) – Single Layer of Micro-Perforated Membrane suspended over various cavity depths and acoustic fills.

(From NRC: 0.45 to 0.75) View / Download PDF
Double Layer of Micro-Perforated Membrane suspended over various cavity depths and acoustic fills Page 1 of 5

ASTM C423-07 (52-02) – Double Layer of Micro-Perforated Membrane suspended over various cavity depths and acoustic fills.

(From NRC: 0.55 to 0.80) View / Download PDF
Sound Transmission Loss on Mesh Membrane (STC: 1) Page 1 of 3

ASTM E90-04 (1-08) – Sound Transmission Loss on Mesh Membrane

Objective: Obtain sound transmission loss of specimen (STC: 1) View / Download PDF
Sound Transmission Loss on Micro-perforated Membrane (STC: 3) Page 1 of 3

ASTM E90-04 (2-08) – Sound Transmission Loss on Micro-Perforated Membrane

Objective: Obtain sound transmission loss of specimen (STC: 3) View / Download PDF
Sound Transmission Loss on Solid Membrane (STC: 5) Page 1 of 3

ASTM E90-04 (3-08) – Sound Transmission Loss on Solid Membrane

Objective: Obtain sound transmission loss of specimen (STC: 5) View / Download PDF
