NMG-2LSP – Mounting Types

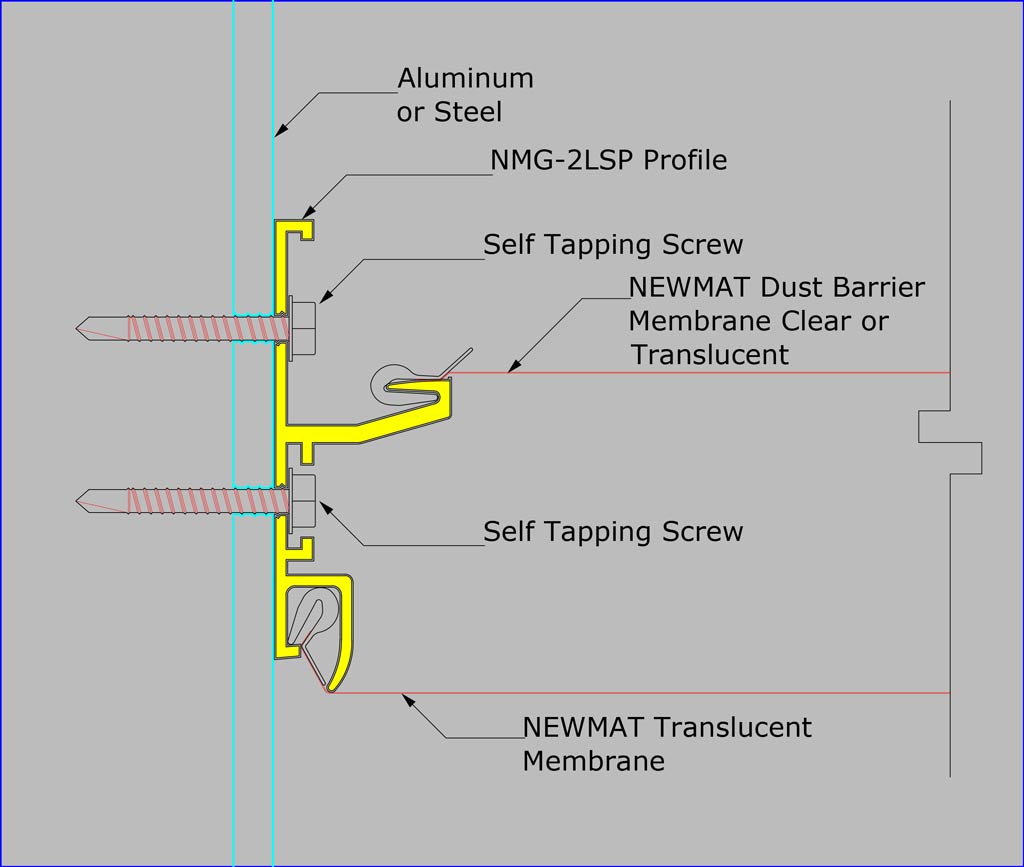

NMG-2LSP - Mounted on Aluminum or Steel with Self Tapping Screws

NMG-2LSP – Mounted on Aluminum or Steel / Self Tapping Screw

Download AutoCAD File View / Download PDF File

Sorry, No Image Available

NMG-2LSP – Mounted on Brick / NA

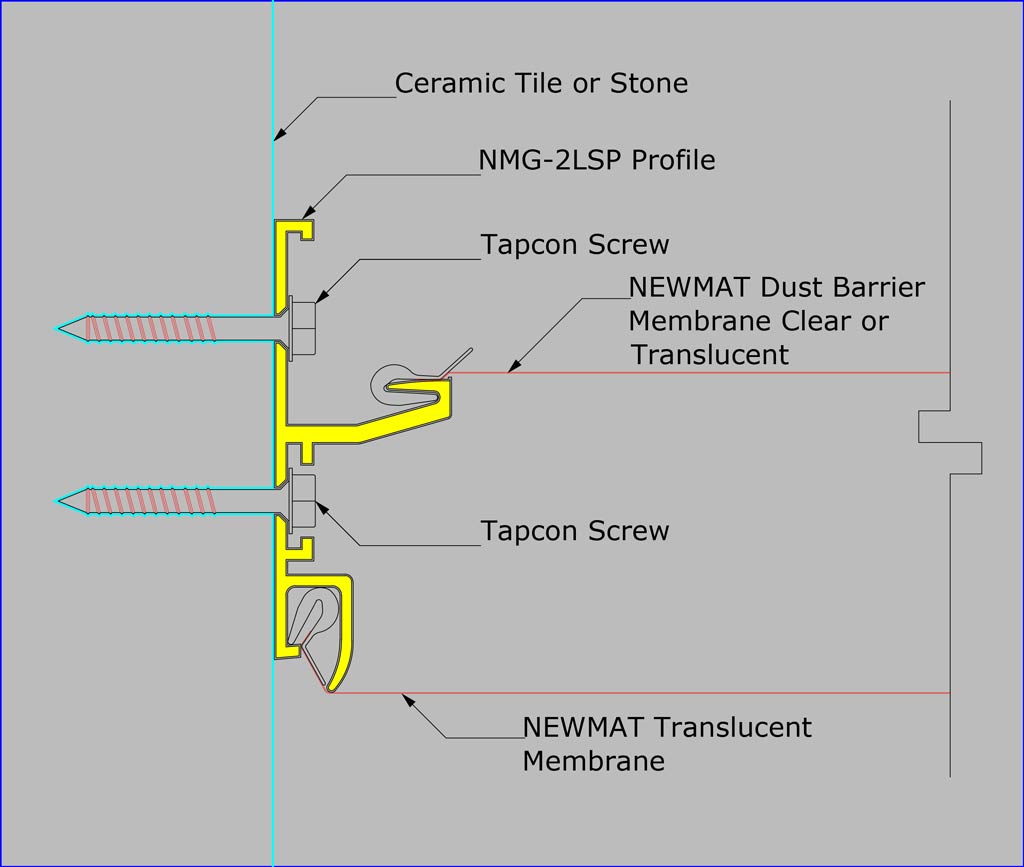

NMG-2LSP - Mounted on Ceramic or Stone with Tapcon Screws

NMG-2LSP – Mounted on Ceramic Tile or Stone / Tapcon Screw

Download AutoCAD File View / Download PDF File

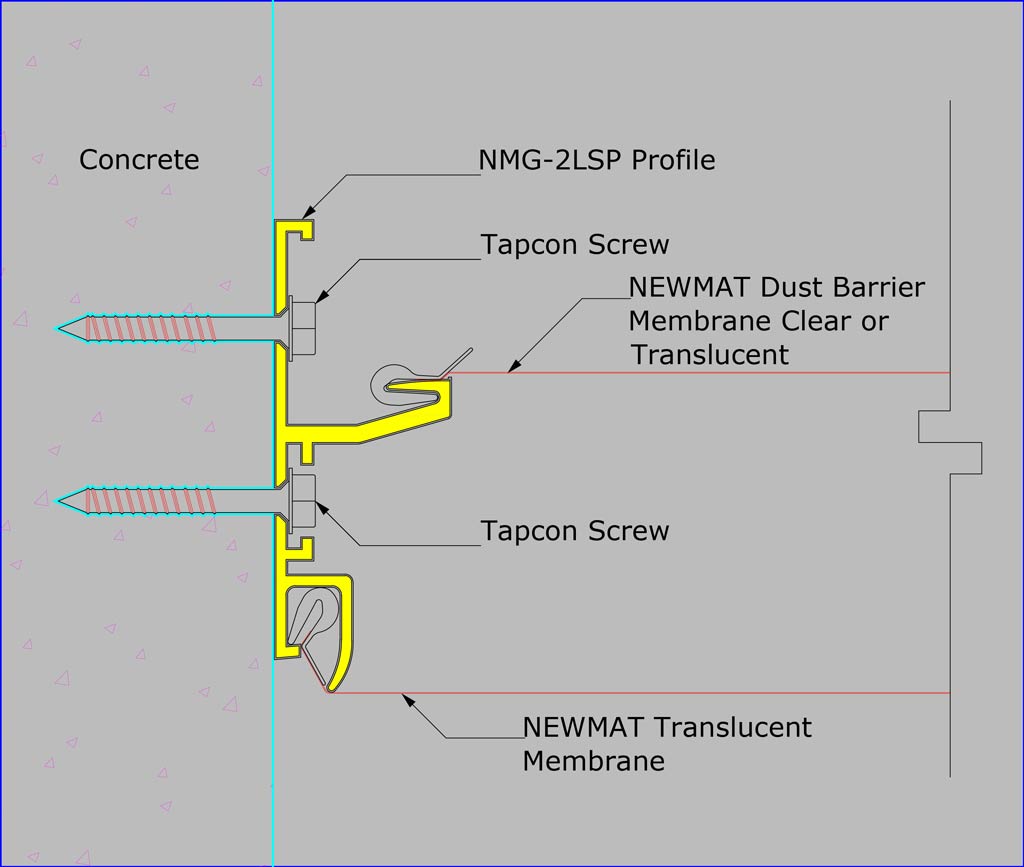

NMG-2LSP - Mounted on Concrete with Tapcon Screws

NMG-2LSP – Mounted on Concrete / Tapcon Screw

Download AutoCAD File View / Download PDF File

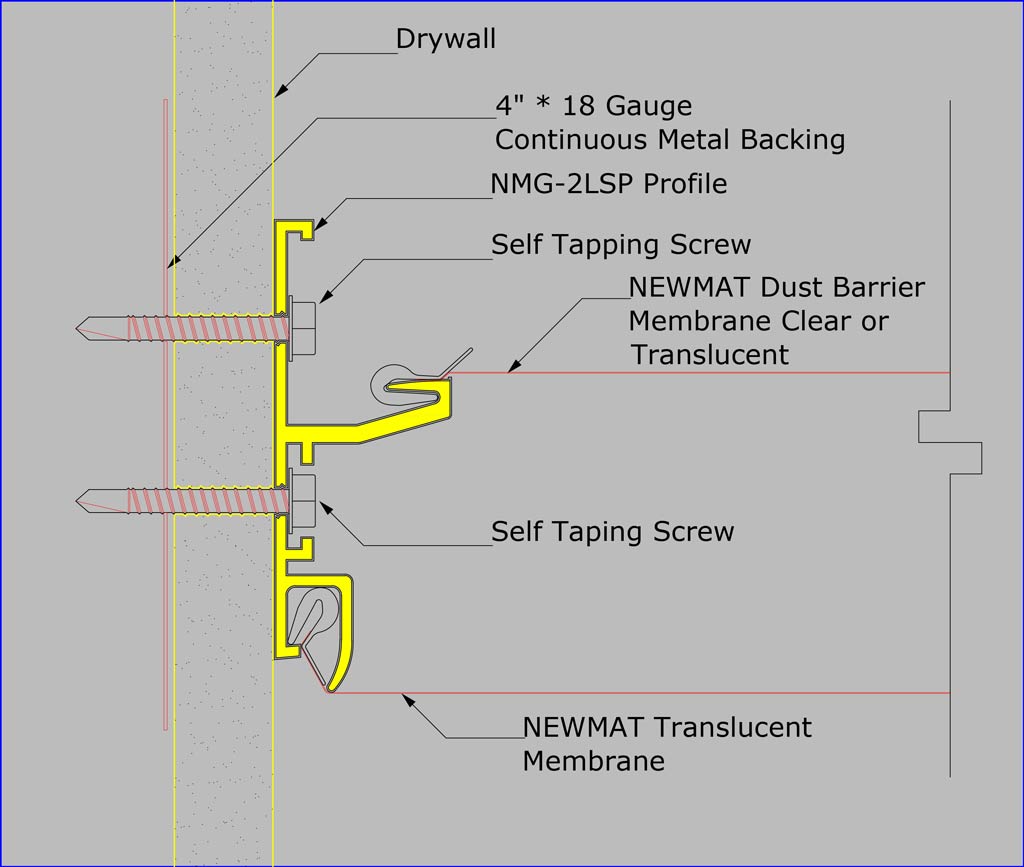

NMG-2LSP - Mounted on Drywall with Self Tapping Screws

NMG-2LSP – Mounted on Drywall / Self Tapping Screw

Download AutoCAD File View / Download PDF File

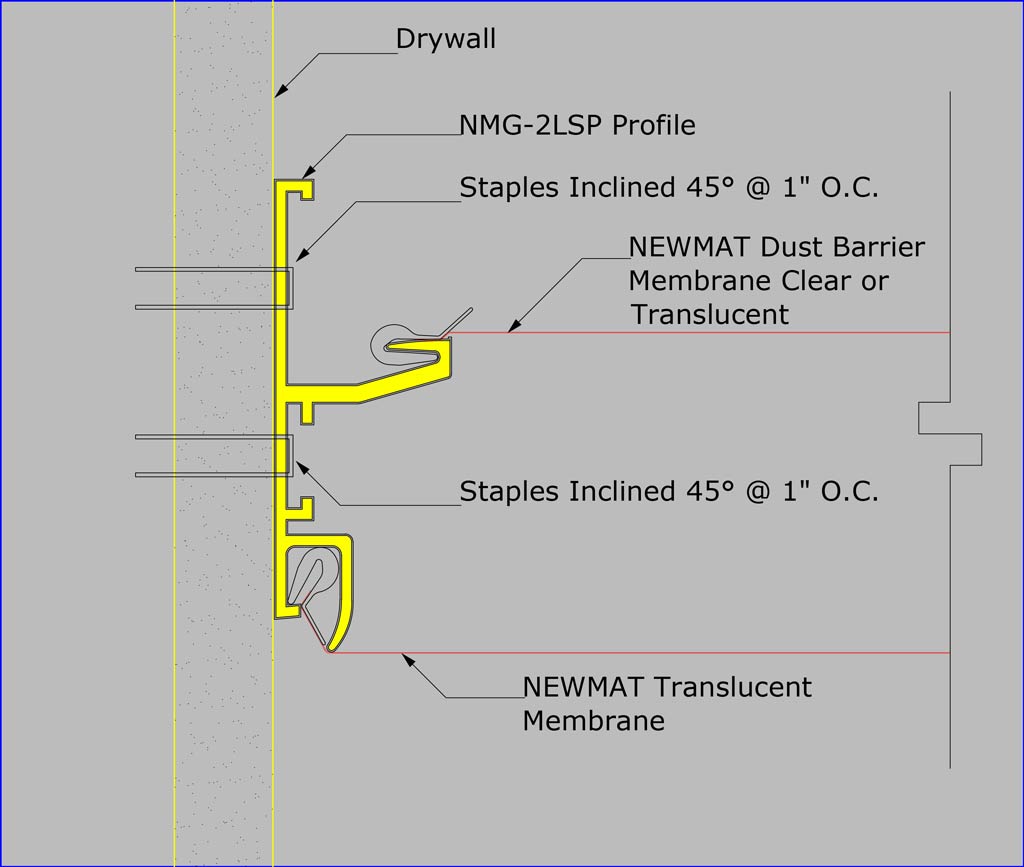

NMG-2LSP - Mounted on Drywall with Staples

NMG-2LSP – Mounted on Drywall / Staples

Download AutoCAD File View / Download PDF File

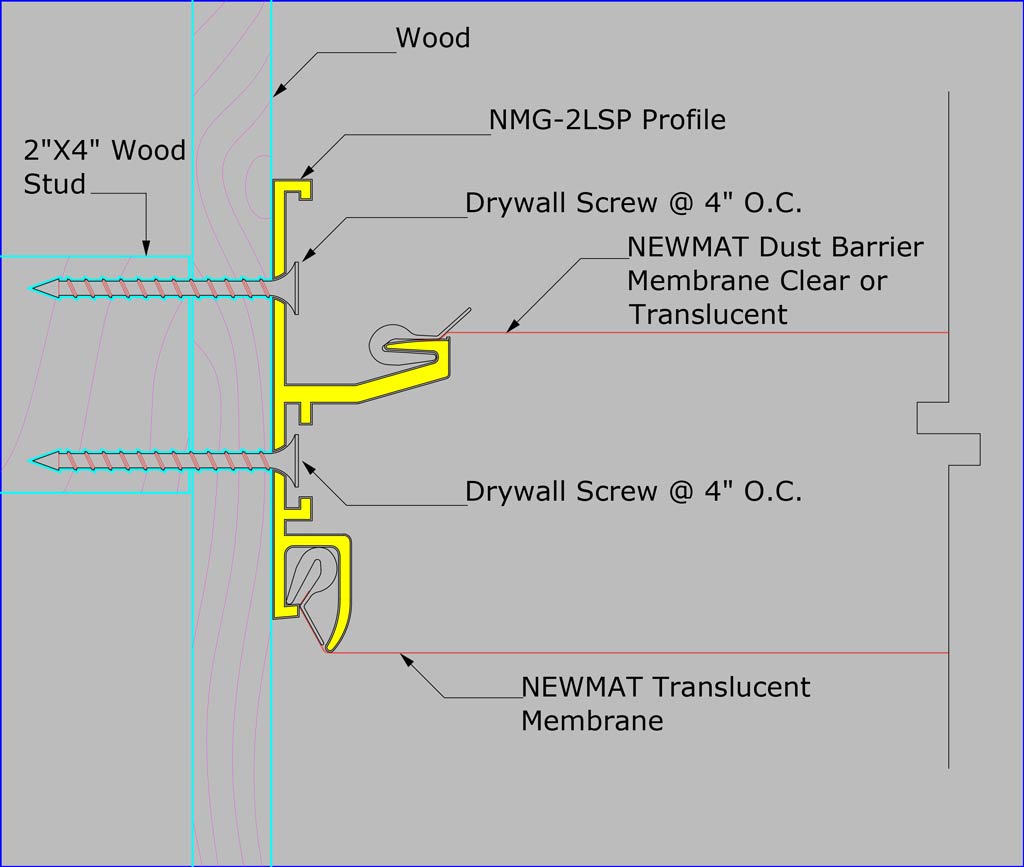

NMG-2LSP - Mounted on Wood with Drywall Screws

NMG-2LSP – Mounted on Wood / Drywall Screw

Download AutoCAD File View / Download PDF File

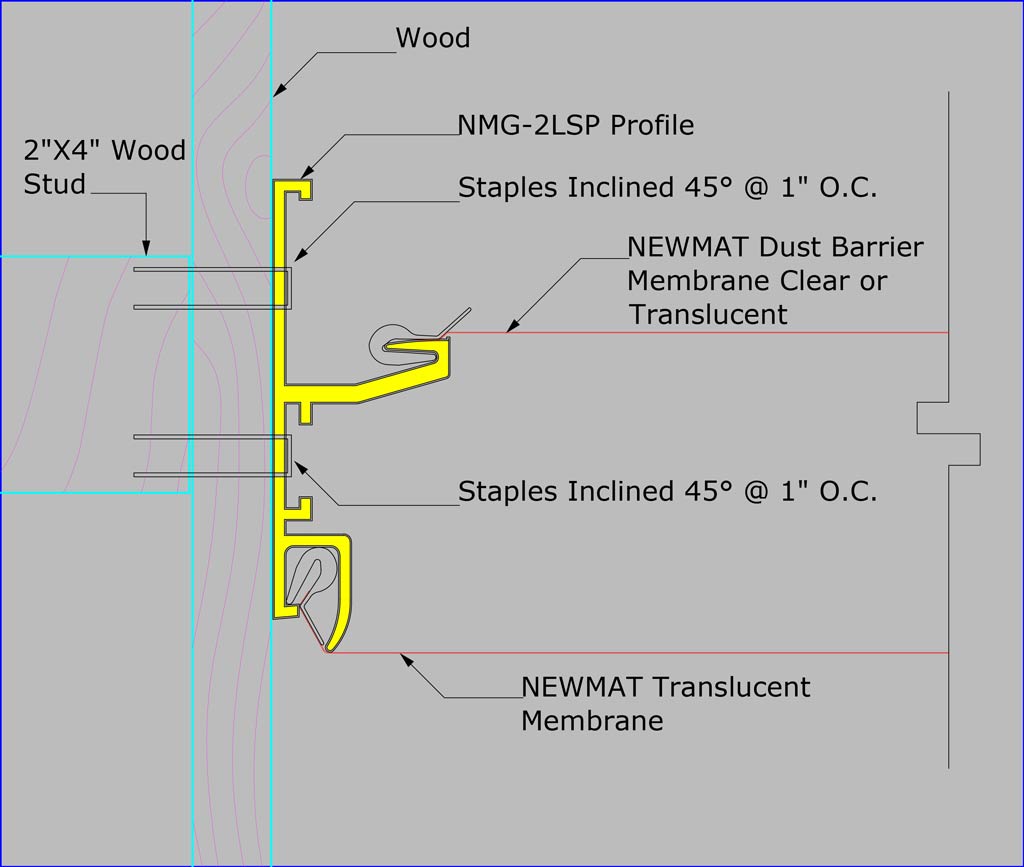

NMG-2LSP - Mounted on Wood with Staples

NMG-2LSP – Mounted on Wood / Staples

Download AutoCAD File View / Download PDF File
