NMG-2LSA – Mounting Options

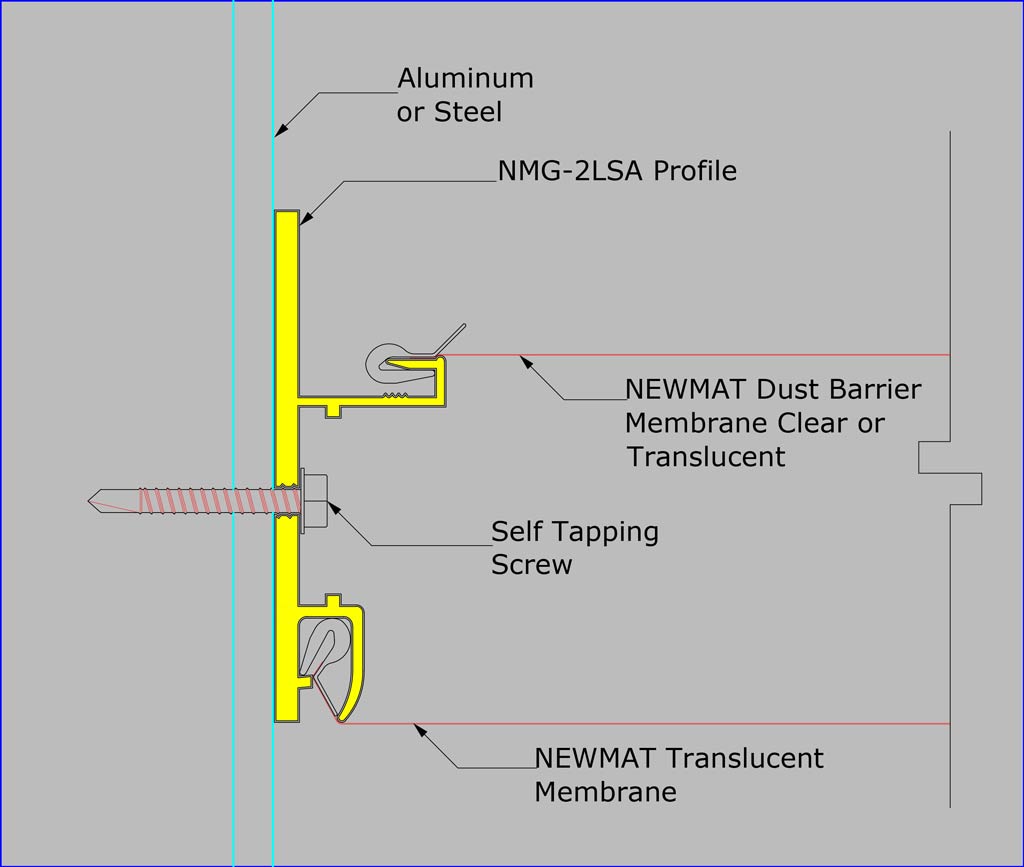

NMG-2LSA - Mounted on Aluminum or Steel with Self Tapping Screws

NMG-2LSA – Mounted on Aluminum or Steel / Self Tapping Screw

Download AutoCAD File View / Download PDF File

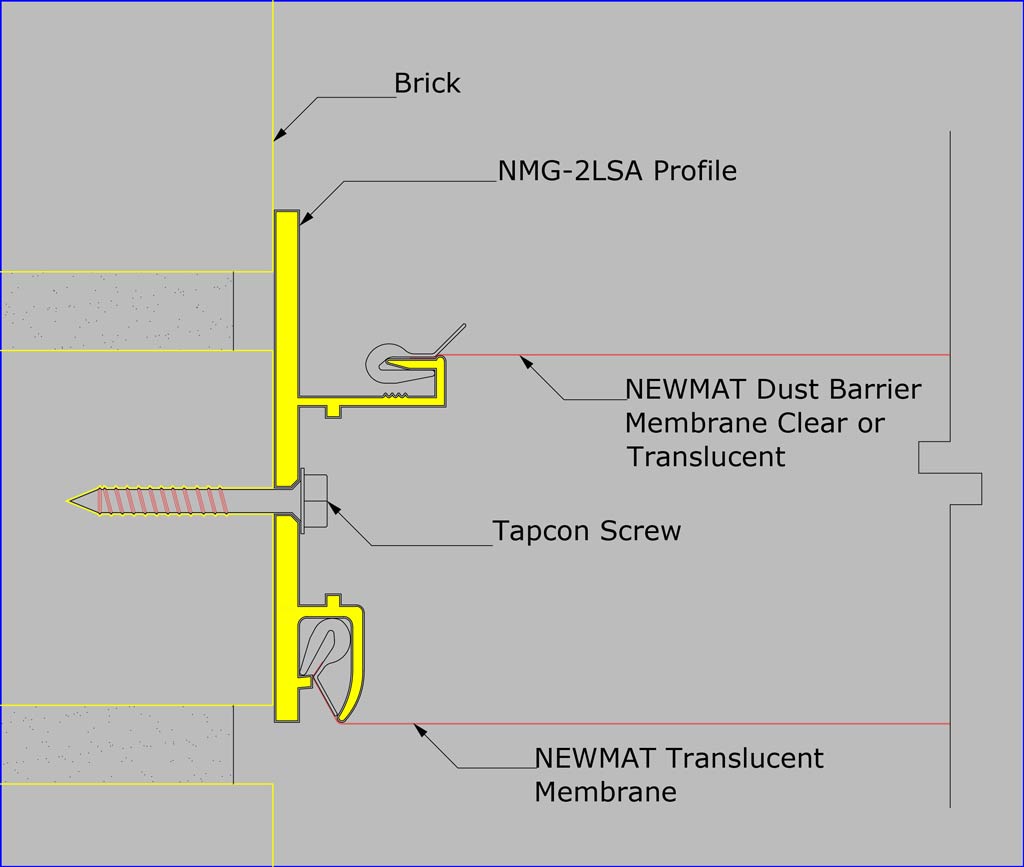

NMG-2LSA - Mounted on Brick with Tapcon Screws

NMG-2LSA – Mounted on Brick / Tapcon Screw

Download AutoCAD File View / Download PDF File

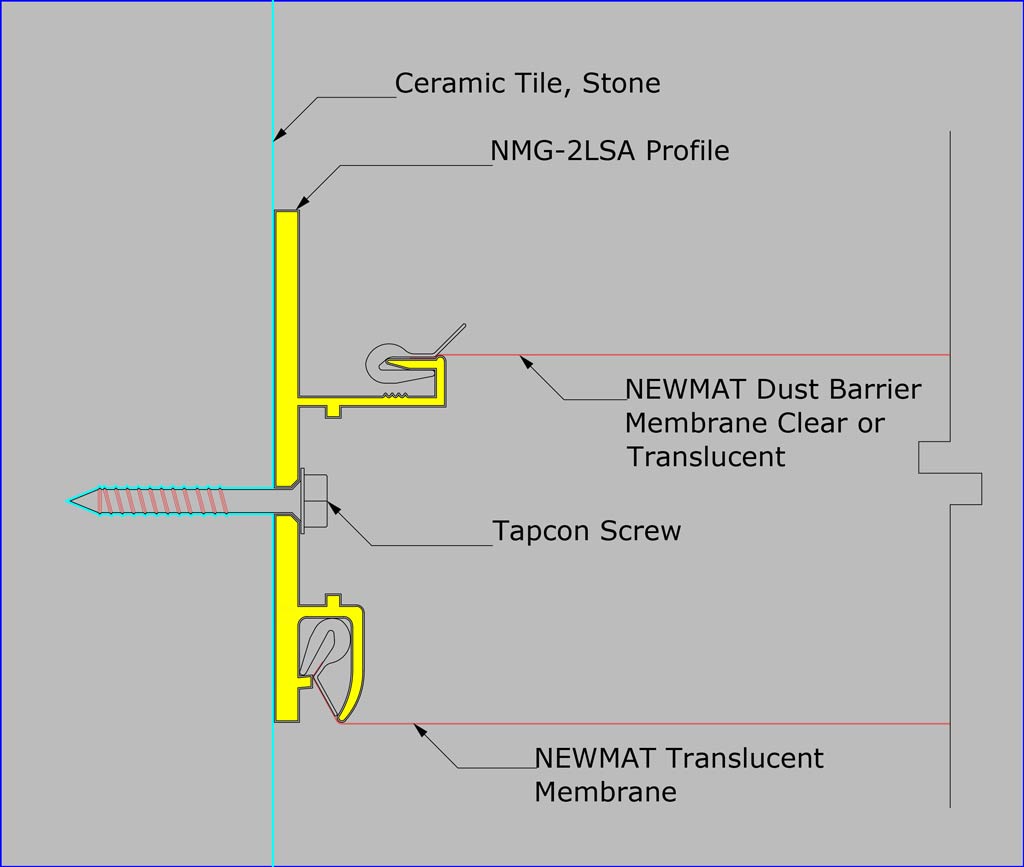

NMG-2LSA - Mounted on Ceramic or Stone with Tapcon Screws

NMG-2LSA – Mounted on Ceramic Tile or Stone / Tapcon Screw

Download AutoCAD File View / Download PDF File

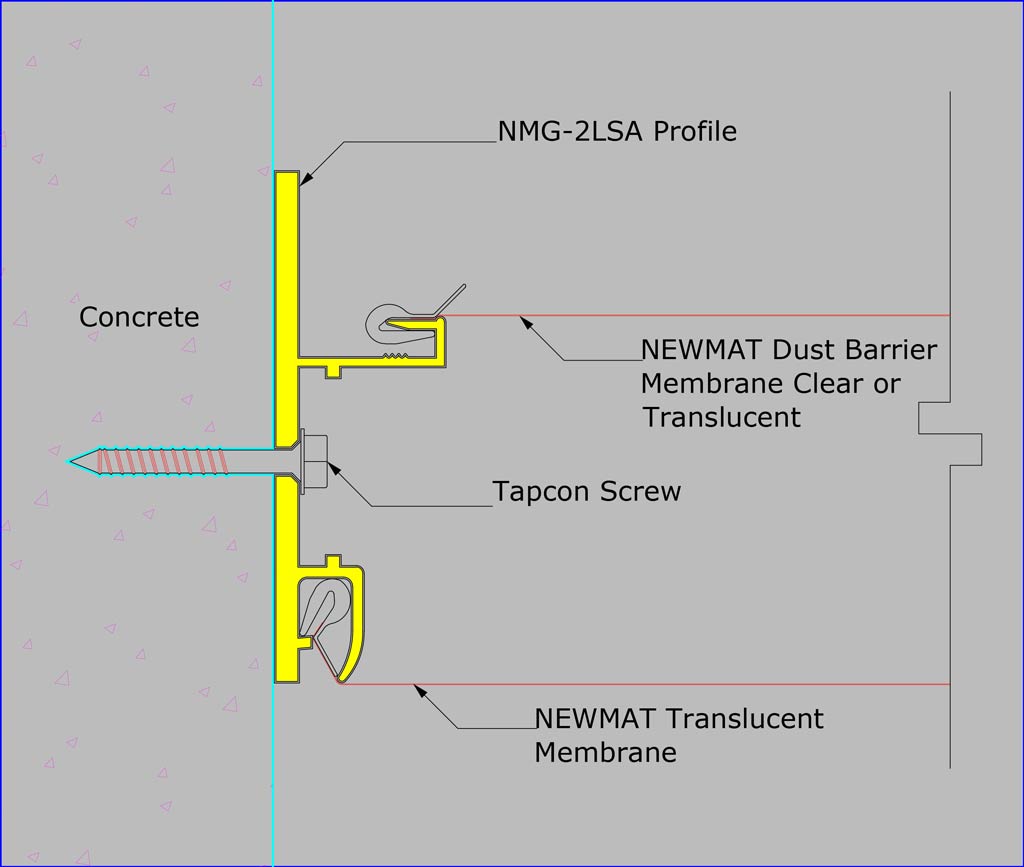

NMG-2LSA - Mounted on Concrete with Tapcon Screws

NMG-2LSA – Mounted on Concrete / Tapcon Screw

Download AutoCAD File View / Download PDF File

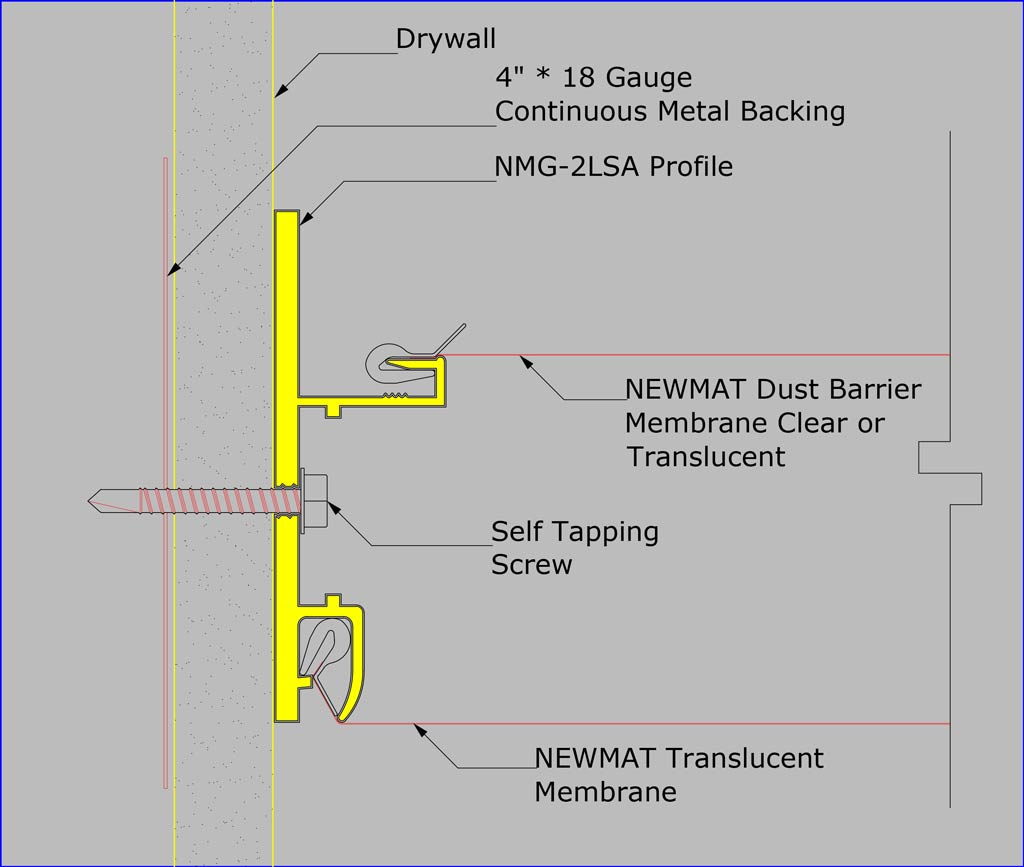

NMG-2LSA - Mounted on Drywall with Self Tapping Screws

NMG-2LSA – Mounted on Drywall / Self Tapping Screw

Download AutoCAD File View / Download PDF File

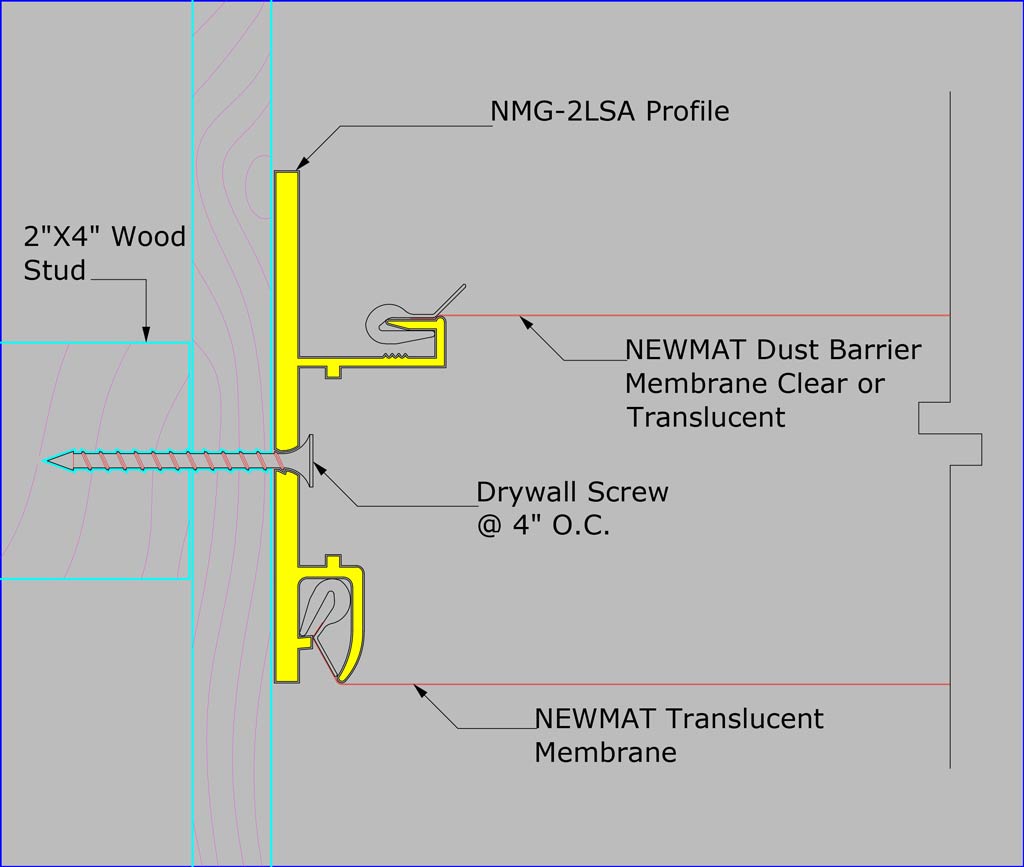

NMG-2LSA - Mounted on Wood with Drywall Screws

NMG-2LSA – Mounted on Wood / Drywall Screw

Download AutoCAD File View / Download PDF File
