NMG-2LS-7 – Mounting Types

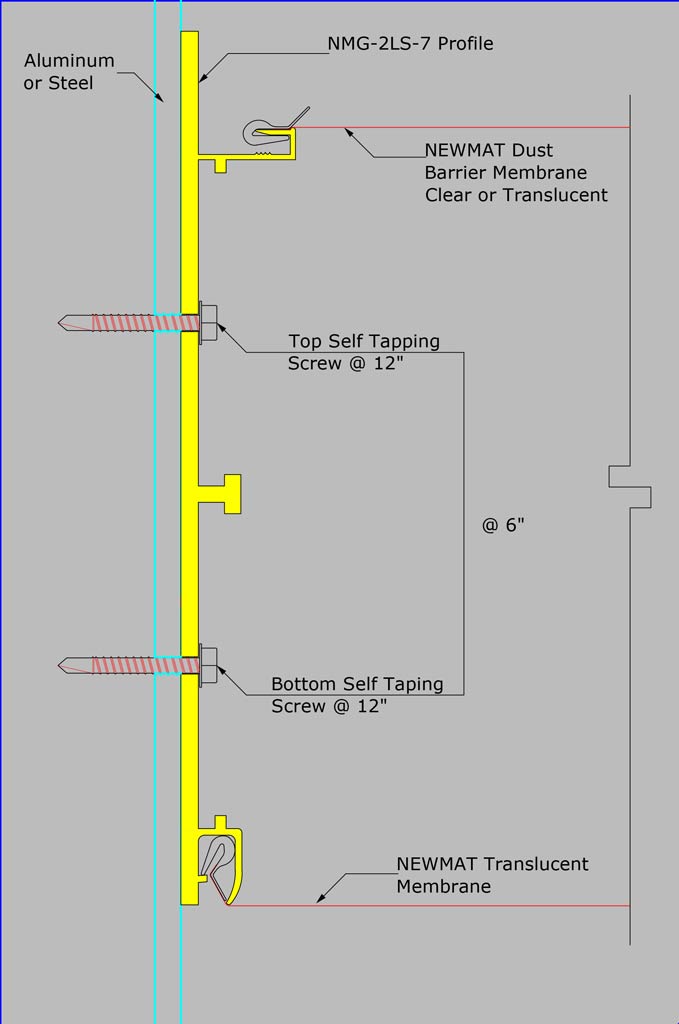

NMG-2LS-7 - Mounted on Aluminum or Steel with Self Tapping Screws

NMG-2LS-7 – Mounted on Aluminum or Steel / Self Tapping Screws

Download AutoCAD File View / Download PDF File

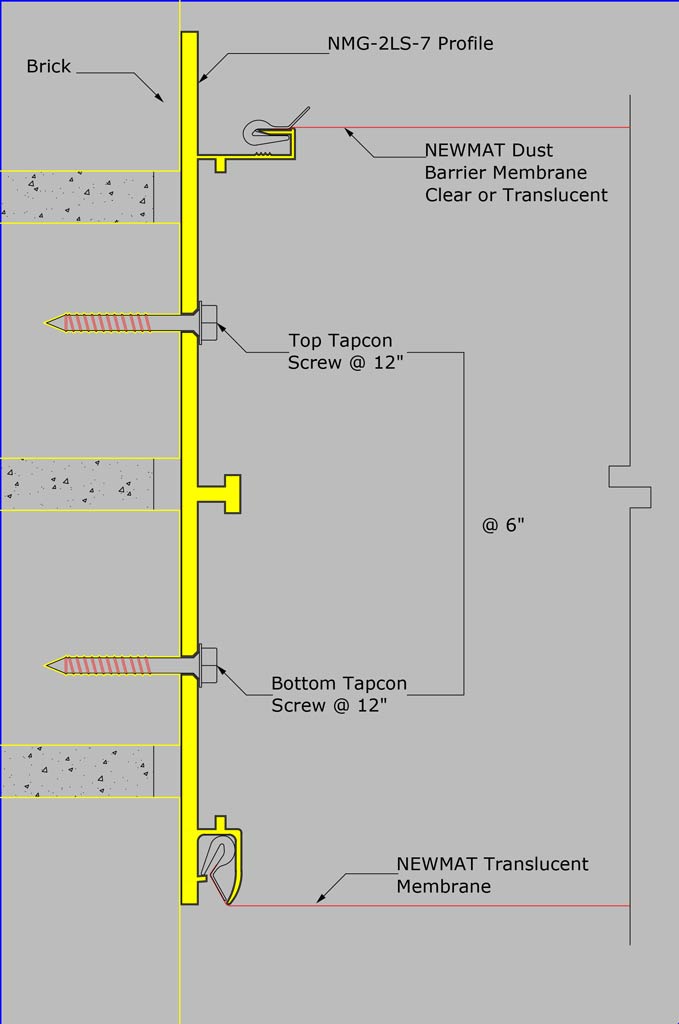

NMG-2LS-7 - Mounted on Brick with Tapcon Screws

NMG-2LS-7 – Mounted on Brick / Tapcon Screws

Download AutoCAD File View / Download PDF File

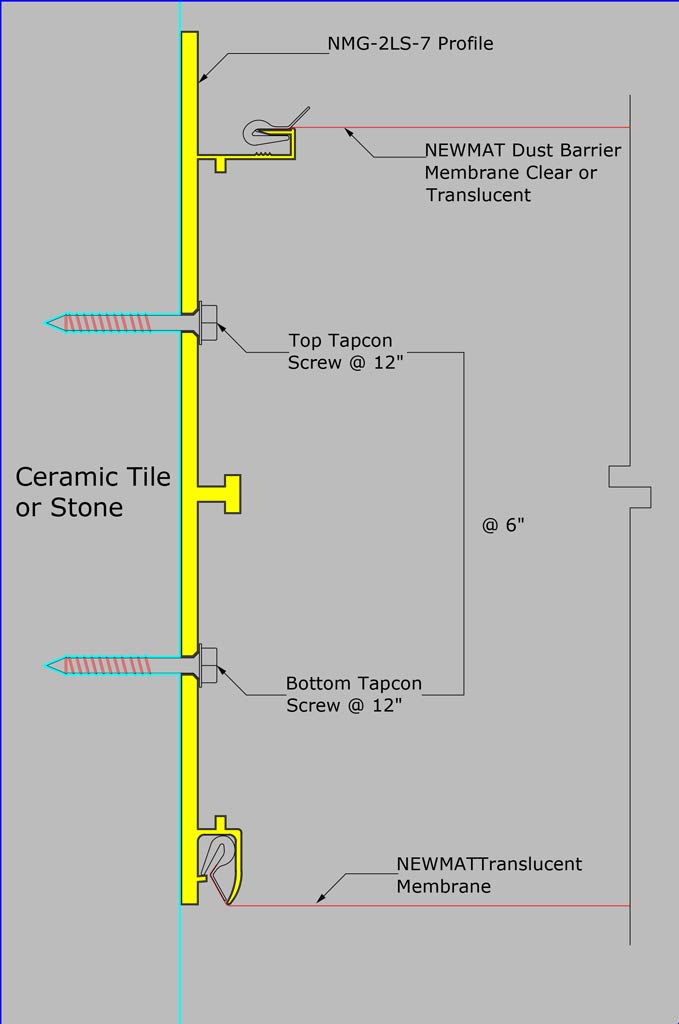

NMG-2LS-7 - Mounted on Ceramic or Stone with Tapcon Screws

NMG-2LS-7 – Mounted on Ceramic Tile or Stone / Tapcon Screws

Download AutoCAD File View / Download PDF File

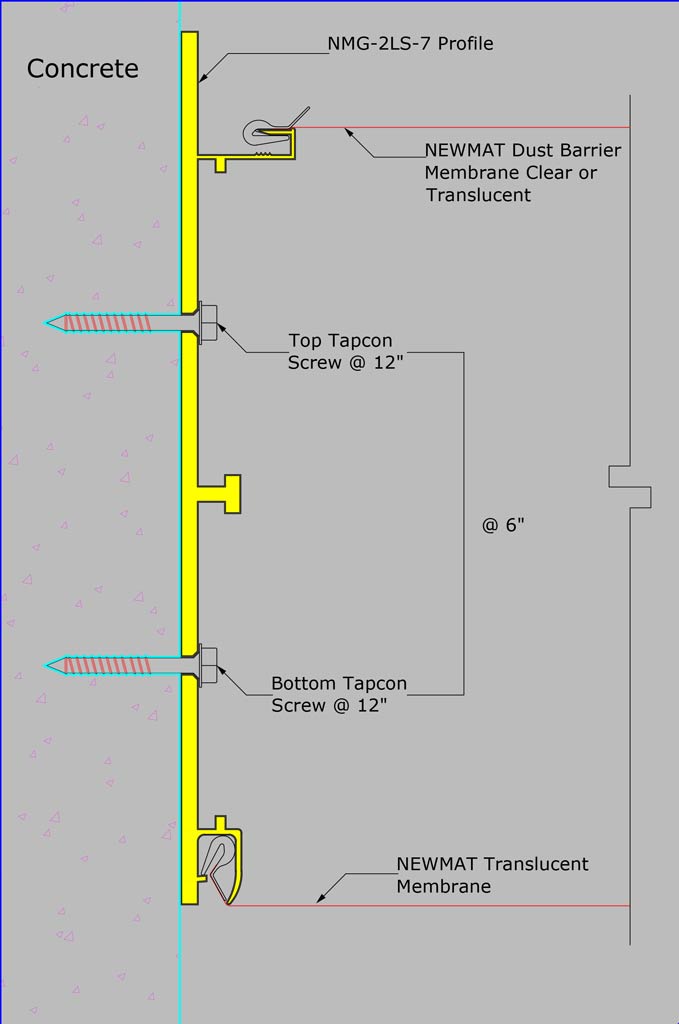

NMG-2LS-7 - Mounted on Concrete with Tapcon Screws

NMG-2LS-7 – Mounted on Concrete / Tapcon Screws

Download AutoCAD File View / Download PDF File

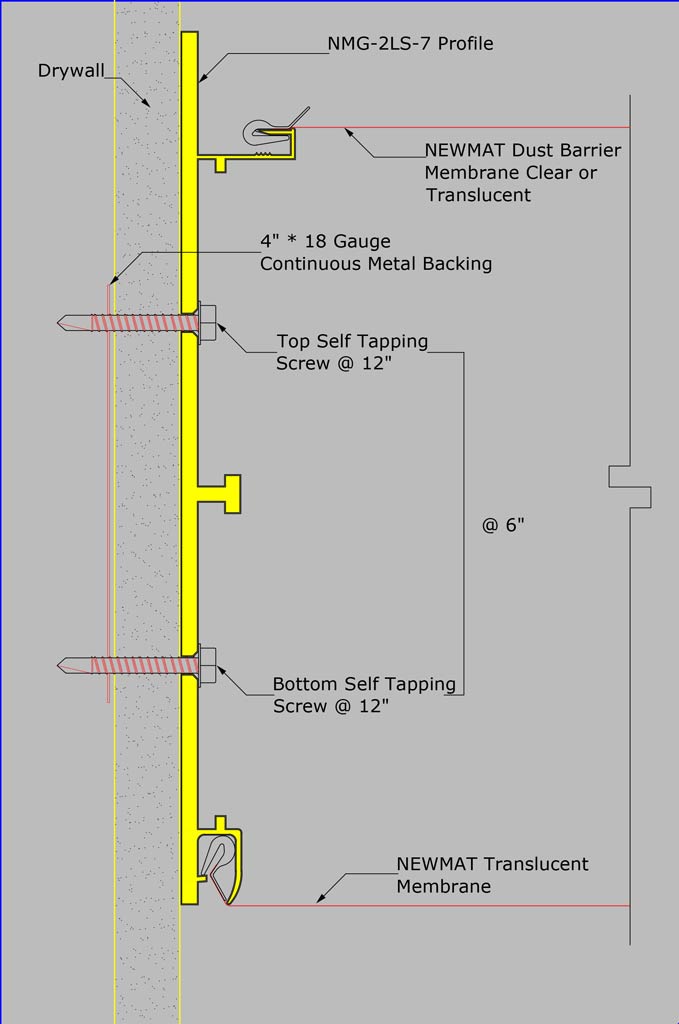

NMG-2LS-7 - Mounted on Drywall with Self Tapping Screws

NMG-2LS-7 – Mounted on Drywall / Self Tapping Screws

Download AutoCAD File View / Download PDF File

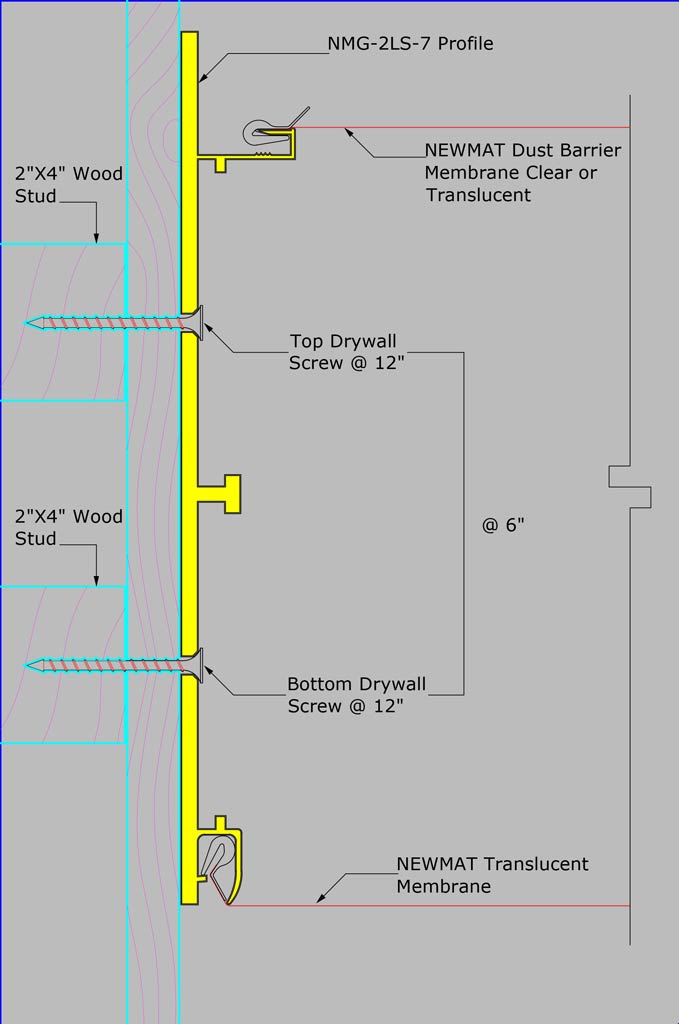

NMG-2LS-7 - Mounted on Wood with Drywall Screws

NMG-2LS-7 – Mounted on Wood / Drywall Screw

Download AutoCAD File View / Download PDF File
